Self-aligning Rotator
Quickly Details:
Type: Self-aligning Welding Rotator
Brand: Sanlian Heavy Industry
Condition:100% brand new
Model number:HGZ
Capacity: 5Ton – 150Ton

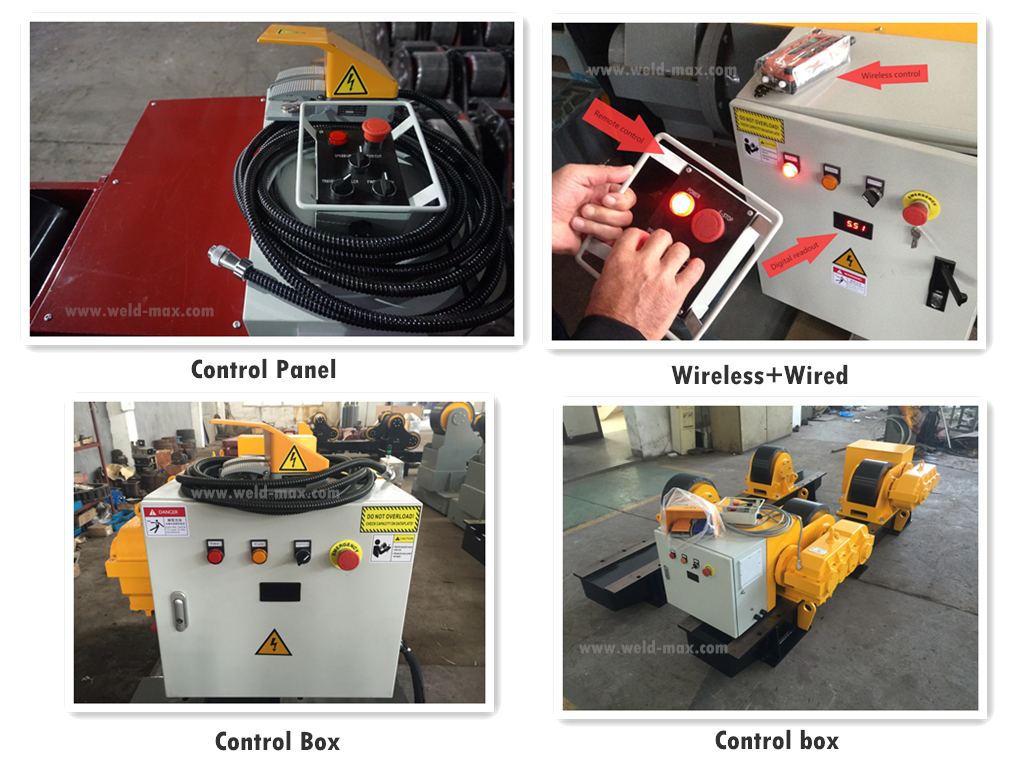

Consist: (1) Drive unit , (1) Idler unit , (1) Control box with hand panel
Voltage:110V-600V
Painting Color:Yellow & Blue /Yellow & Grey / Yellow & Black / Red&Black
Place of origin:Wuxi , China(Mainland)
Application :
Welding Rotator major used in cylinder welding ,such as Marine,Oil&Gas ; Offshore,Petro Chemical ; Plate Heat Exchanger ; Charged air cooler ; Pressure Vessel ; Boiler ; Pipe system&Steel works etc.
Product Description
The welding rotator is applied in the manual welding and automatic welding for metallic tank, vessel and pipe, it is the necessary for the pressure vessel manufacturing. It has the good character as advanced technology, reliable quality, easy operation and so on. The tank rotator has two types including self-aligning and adjustable. It can suit for the difference diameter tank within the range and achieve the stepless speed adjusting under the setted welding parameter, which has the good character as small noise on the transmission and steady rotation for the working table.
Technical Parameters
Type |
Max loading (kg) | Vessel diameter(mm) | Dia. and width of the wheel(mm) |
Roller linear velocity(m/h) 6-60 |
Power of motor(kw) |
|
Rubber rollers | Metal rollers | |||||
HGZ-5 |
5,000 |
Φ250-2300 | Φ250×100 | 2×Φ240×20 |
0.75 |
|
HGZ-10 |
10,000 |
Φ320-2800 | Φ300×120 | 2×Φ290×25 |
1.1 |
|
HGZ-20 |
20,000 |
Φ500-3500 | Φ350×120 | 2×Φ340×30 |
1.5 |
|
HGZ-40 |
40,000 |
Φ600-4200 | Φ400×120 | 2×Φ390×40 |
3.0 |
|
HGZ-60 |
60,000 |
Φ750-4800 | Φ450×120 | 2×Φ440×50 |
4.0 |
|
HGZ-80 |
80,000 |
Φ850-5000 | Φ500×120 | 2×Φ490×60 |
2X3 |
|
HGZ-100 |
100,000 |
Φ1000-5500 | Φ500×120 | 2×Φ490×80 |
2X3 |
|
HGZ-150 |
150,000 |
Φ1000-6000 | / | Φ620×220 |
2X4 |
|
HGZ-250 |
250,000 |
Φ1800-7500 | / | Φ660×260 |
2X5.5 |
|
HGZ-500 |
500,000 |
Φ1800-8000 | / | Φ750×400 |
2X7.5 |
