H-Beam Gantry Welding Machine (Submerged Arc Welding)

Short Description:

Quickly Details: Type: H-beam Gantry Welding Machine Brand:Sanlian Heavy Industry Condition:100% brand new Model number:LHA Consist: (1) Main frame,(2) Welding machine,(2)flux recovery machine ,(1) Control box Voltage:110V-600V Painting Color:Yellow & Blue Place of origin:Wuxi , China(Mainland)   Applications: LHA H-beam Gantry welding machine is used for produce H-beam,fillet welding in the flat position.   Description: LHA H-beam steel Gantry Welding Machine is specially desig...


  • FOB Price: Negotiable
  • Min.Order Quantity: 1set
  • Supply Ability: 30sets per Month
  • Port: Shanghai
  • Payment Terms: T/T or 100% LC at sight
  • Description and Parameters

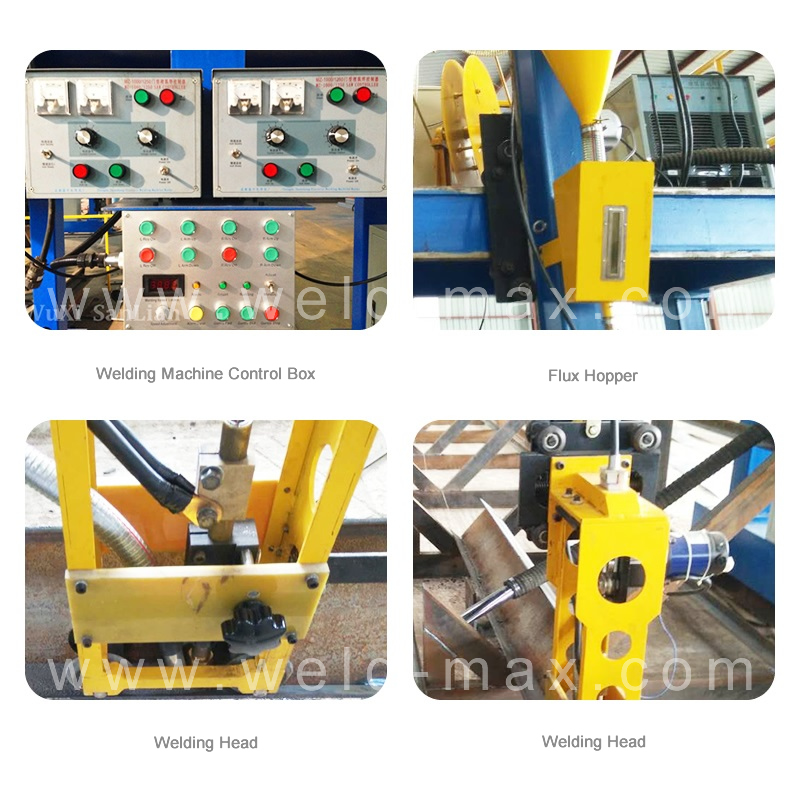

    Details Photos

    Brand Using

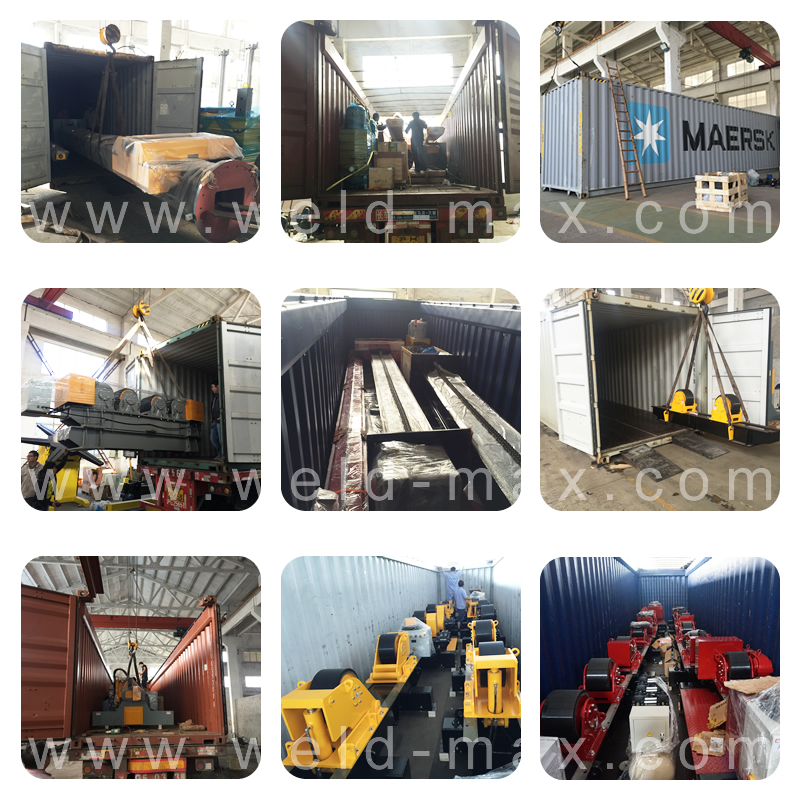

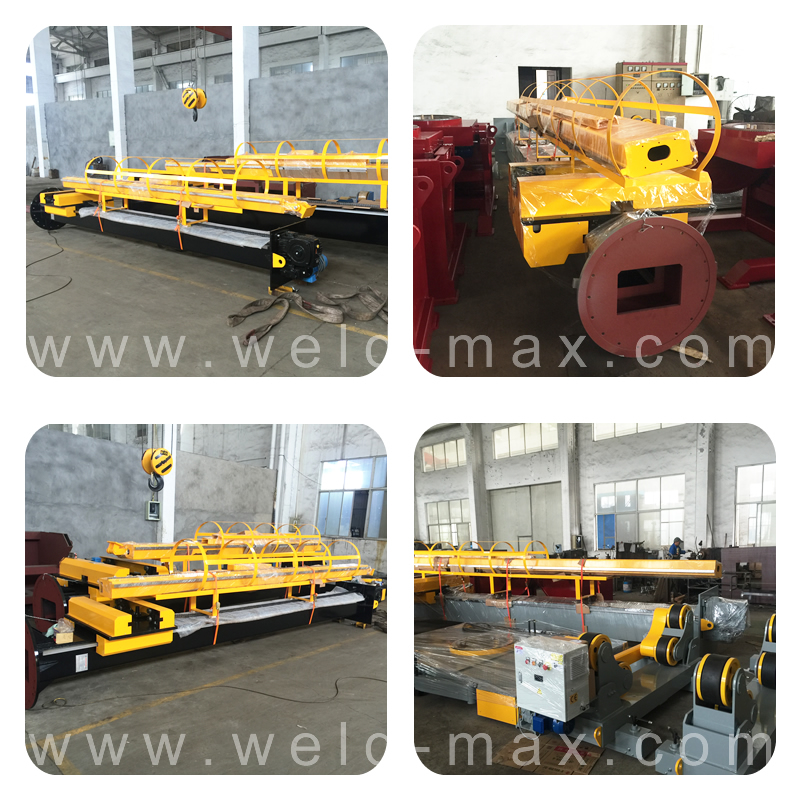

    Packing and Shipment

    Product Tags

    Quickly Details:

    Type: H-beam Gantry Welding Machine

    Brand:Sanlian Heavy Industry

    Condition:100% brand new

    Model number:LHA

    Consist: (1) Main frame,(2) Welding machine,(2)flux recovery machine ,(1) Control box

    Voltage:110V-600V

    Painting Color:Yellow & Blue

    Place of origin:Wuxi , China(Mainland)



    Applications:

    LHA H-beam Gantry welding machine is used for produce H-beam,fillet welding in the flat position.



    Description:

    LHA H-beam steel Gantry Welding Machine is specially designed for the welding of H-beam . It realized the combination of welding control and trolley control and can be operated easily .It use ULS motor drive for the drive of portal .Driven by alternating current converter ; stable speed ; digital display of the linearity speed , good reliability ,there is no three- axle mechanical tracking ar guiding mechanism ; floating type tracing to guarantee that the welding torch targeting at the welding seam accurately .The power line for the submerged arc welding can move on the portal flame to shorten the length of the control cable and the welding cable as far as possible to quicken the response , reduce the pressure and stabilizing the welding current.



    Competitive Advantage:

    2.Driving system is bilateral.

    3.Using famous electric ,such as Siemens or Schneider

    4.Equip 2 sets of MZ-1000 SAW welding machine.



    Technical Parameters

    Height of the Web

    180-1800mm

    Thickness of the Web

    6-32mm

    Height of the Flange

    150-800mm

    Thickness of Flange

    6-40mm

    Length of the Work Piece

    2000-18000mm

    Length of the Roller Way

    28000mm

    Assembling Speed

    500-1200mm/min
