PU Wheels Self-algined Rotator

Short Description:

  Quickly Details: Type:Self-aligned Welding Rotator  Brand:Weld-max  Condition:100% brand new    Model number:HGZ   Capacity:5Ton – 150Ton Consist: (1) Drive unit , (1) Idler unit , (1) Control box with hand panel  Voltage:110V-600V  Painting Color:Yellow & Blue /Yellow & Grey / Yellow & Black / Red&Black   Application: Welding Rotator major used in cylinder welding ,such as Marine,Oil&Gas ; Offshore,Petro Chemical ; Plate Heat Exchanger ; Charged ai...


  • FOB Price: Negotiable
  • Min.Order Quantity: 1set
  • Supply Ability: 30sets per Month
  • Port: Shanghai
  • Payment Terms: T/T or 100% LC at sight
  • Description and Parameters

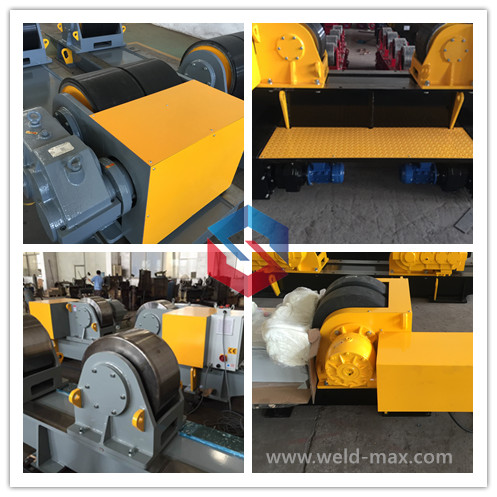

    Detailed Photos

    Brand Using

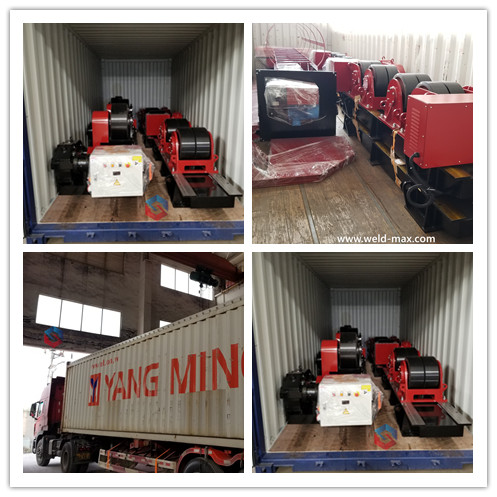

    Packing and Shipment

    Related Products

    Product Tags



    Quickly Details:

    Type:Self-aligned Welding Rotator

    Brand:Weld-max

    Condition:100% brand new

    Model number:HGZ

    Capacity:5Ton – 150Ton

    Consist: (1) Drive unit , (1) Idler unit , (1) Control box with hand panel

    Voltage:110V-600V

    Painting Color:Yellow & Blue /Yellow & Grey / Yellow & Black / Red&Black



    Application:

    Welding Rotator major used in cylinder welding ,such as Marine,Oil&Gas ; Offshore,Petro

    Chemical ; Plate Heat Exchanger ; Charged air cooler ; Pressure Vessel ; Boiler ; Pipe

    system&Steel works etc.



    Product Description:

    Welding rotator is used to weld,polish and assemble the cylinder-shells,and to line the shells

    with rubber.It can be aligned by itself according to the size of the shell, it can be controlled

    with AC frequency converter,and the linear velocity is displayed by the digital.The distance

    between the wheels ,could adjust by bolt or manual lead screw.To realize the diameter could

    suit for the workpiece.Wheels with PU make wheels more wear-resistant.

    We also can design the customize various types of the welding rotator in accordance with the

    customers requirement.

    If you are interested in our machine,please contact us.

    E-mail:  [email protected]

    Website:  www.weld-max.com

       Type

    Max loading (kg)

    Vessel diameter(mm)

    Dia. and width of the wheel(mm)

    Roller linear velocity(m/h)















    6-60























    Power of motor(kw)

    Rubber rollers

    Metal rollers

       HGZ-5

    5,000

    Φ250-2300

    Φ250×100

    2×Φ240×20

    0.75

       HGZ-10

    10,000

    Φ320-2800

    Φ300×120

    2×Φ290×25

    1.1

       HGZ-20

    20,000

    Φ500-3500

    Φ350×120

    2×Φ340×30

    1.5

       HGZ-40

    40,000

    Φ600-4200

    Φ400×120

    2×Φ390×40

    3.0

       HGZ-60

    60,000

    Φ750-4800

    Φ450×120

    2×Φ440×50

    4.0
