20T Fixed Adjustable Welding Rolls With 180mm Width PU Wheels And 2*7.5KW Motor

Short Description:

Quicly Details: Type:Self-aligning/Adjustable Welding Rotator Brand:Weld-max   Condition:100% brand new  Model number:HGZ  Capacity:5Ton – 150Ton  Consist: (1) Drive unit , (1) Idler unit , (1) Control box with hand panel Voltage:110V-600V  Painting Color:Yellow & Blue /Yellow & Grey / Yellow & Black / Red&Black  Place of origin:Wuxi , China(Mainland)    Product Description:  This equipment consistd of one set drive rotator,one set idler rotator and contr...


  • FOB Price: Negotiable
  • Min.Order Quantity: 1set
  • Supply Ability: 30sets per Month
  • Port: Shanghai
  • Payment Terms: T/T or 100% LC at sight
  • Description and Parameters

    Detailed Photos

    Brand Using

    Packing And Shippment

    Related Products

    Product Tags

    Quicly Details:

    Type:Self-aligning/Adjustable Welding Rotator

    Brand:Weld-max

    Condition:100% brand new

    Model number:HGZ

    Capacity:5Ton – 150Ton

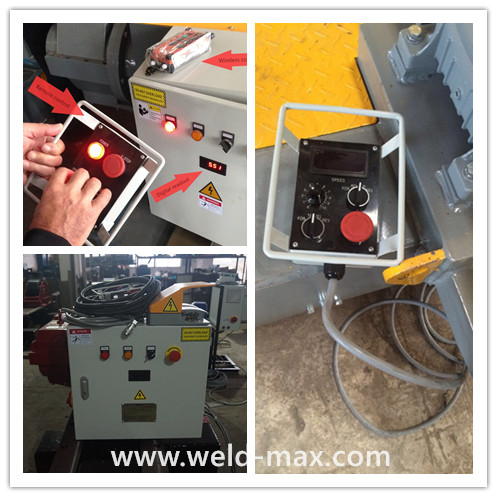

    Consist: (1) Drive unit , (1) Idler unit , (1) Control box with hand panel

    Voltage:110V-600V

    Painting Color:Yellow & Blue /Yellow & Grey / Yellow & Black / Red&Black

    Place of origin:Wuxi , China(Mainland)



    Product Description:

    This equipment consistd of one set drive rotator,one set idler rotator and control system,cause the vessel diameter more big so we used double driver type,means two motor with driver gear reducer drive to toller to rotation,so the Large driving capacity with lower failure rate.Roller bed are fixed type and all of roller with best quantity of PU without steel wheel support,especial big tons rotator used the PU wihch both drive friction and support strength can be guaranteed,we guarantee used two years and will not broken.

    Application:

    Welding rotator is mainly used for cylindrical tank’s welding, polishing, rubber lining, assembling ,etc, and it’s also can match up with other tools for welding or assembling for cone and section equality solid of revolution. It’s widely used for many industries such as wind powder, pressure vessel, petrochemical, pipeline, steel structure, boiler, shipbuilding, surfacing welding rebuilding, etc. We also can offer customized special welding rotators according to client’s requirements.

    应用范围_副本

    Features:

    1.Polyurethane roller, Rubber Roller or steel roller

    2.Anti creep function

    3.Hydraulic lifting for fit up pipes

    4.Automatic traveling or Manual traveling on the rail

    5.The swing angle of roller group can be automatically regulaterd according to the work piece diameter and size and manual calibration is not needed.

    6.We also can design the customize various types of the welding rotator in accordance with the customers requiremt

    7.Imported frequency conversion speed regulator, which features in wide regulation width, big starting power and high adjustable precision.

    Product Parameter:

       Type

    Max loading (kg)

    Vessel diameter(mm)

    Dia. and width of the wheel(mm)

    Roller linear velocity(m/h)















    6-60























    Power of motor(kw)

    Rubber rollers

    Metal rollers

       HGZ-5

    5,000

    Φ250-2300

    Φ250×100

    2×Φ240×20

    0.75

       HGZ-10

    10,000

    Φ320-2800

    Φ300×120

    2×Φ290×25

    1.1

       HGZ-20

    20,000

    Φ500-3500

    Φ350×120

    2×Φ340×30

    1.5

       HGZ-40

    40,000

    Φ600-4200

    Φ400×120

    2×Φ390×40

    3.0

       HGZ-60

    60,000

    Φ750-4800

    Φ450×120

    2×Φ440×50

    4.0

       HGZ-80

    80,000

    Φ850-5000

    Φ500×120

    2×Φ490×60

    2X3

      HGZ-100

    100,000

    Φ1000-5500

    Φ500×120

    2×Φ490×80

    2X3

      HGZ-150

    150,000

    Φ1000-6000

    /

    Φ620×220

    2X4

      HGZ-250

    250,000

    Φ1800-7500

    /

    Φ660×260

    2X5.5

      HGZ-500

    500,000

    Φ1800-8000

    /

    Φ750×400

    2X7.5
