LH3040 Fixed And Manual Welding Cloumn And Boom With Cross Side And Seam For Flange Welding
LH3040 Fixed And Manual Welding Cloumn And Boom With Cross Side And Seam For Flange Welding
Quickly Details:
Type: Welding Manipulator / Column and Boom
Brand:Weld-Max
Condition:100% brand new
Model number:LH
Size:LH-1010-LH-8080
Consist: (1) Column, (1) Boom , (1)Travel cart, (1) Control box with hand panel
Voltage:110V-600V
Painting Color:Yellow & Blue /Yellow & Grey / Yellow & Black / Red&Black
Place of origin:Wuxi , China(Mainland)
Application:
1Pressure vessels
2Pipe manufacturing industries
3Wind power fabrication
4Chemical & fuel storage tank fabrication
5Any heavy cylindrical job
Product Description:

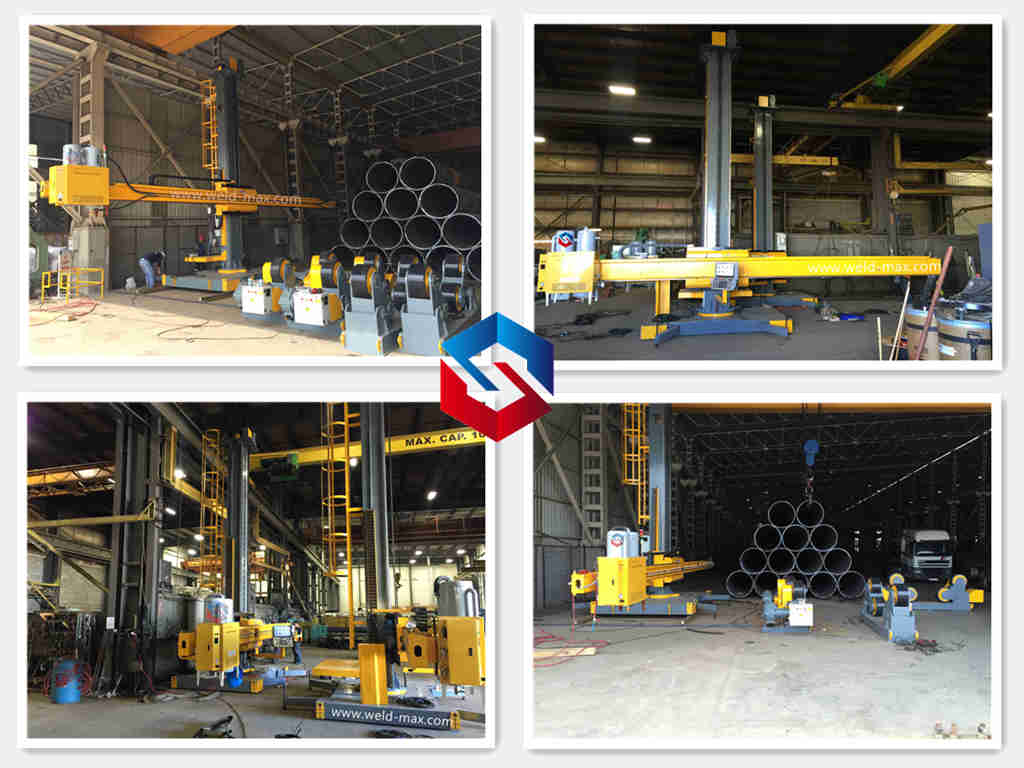

The equipment is mainly composed of a column, a cross arm, a guide device, a lifting mechanism and a ladder barrier.The column and boom adopts welding parts which adopts tempering post welding, then carry out fine machining which can ensure higher precision requirement.There’s safety falling protective device for boom elevating, which can effectively prevent the boom falling problem occurs.There’s ladder on the column, which is convenient for maintenance. Also it is equipped with the platform which is convenient for placing the welders.It can be equipped with wireless remote control box according to users’ requirement, which is convenient for operation.
Product Parameter:
|
Model |
Boom |
Column |
Traveling cart |
Power KW |
|||||
|
Vertical stroke(A)m |
Horizontal stroker(B)m |
Elevation speed m/min |
Traverse speed m/min |
Max load at extremity kg |
Total height(C)m |
Dimensions |
Rail c to c(F)mm |
||
|
LH1515 |
1.5 |
1.5 |
0.3 |
0.12~1.2 |
100 |
2.9 |
1.25×1.2×0.2 |
1052 |
0.91 |
|
LH2020 |
2.0 |
2.0 |
0.3 |
100 |
3.4 |
1.25×1.2×0.2 |
1052 |
0.91 |
|
|
LH3030 |
3.0 |
3.0 |
1.0 |
200 |
5.5 |
2.4×1.9×0.4 |
1600 |
2.75 |
|
|
LH3040 |
3.0 |
4.0 |
1.0 |
200 |
5.5 |
2.4×1.9×0.4 |
1600 |
2.75 |
|
|
LH4040 |
4.0 |
4.0 |
1.0 |
200 |
6.5 |
2.4×1.9×0.4 |
1600 |
2.75 |
|
|
LH4050 |
4.0 |
5.0 |
1.0 |
200 |
6.5 |
2.4×1.9×0.4 |
1600 |
2.75 |
|
|
LH5050 |
5.0 |
5.0 |
0.9 |
300 |
7.8 |
2.6×2.1×0.5 |
1798 |
3.5 |
|
|
LH5060 |
5.0 |
6.0 |
0.9 |
300 |
7.8 |
2.6×2.1×0.5 |
1798 |
3..5 |
|
|
LH6060 |
6.0 |
6.0 |
0.9 |
300 |
9.7 |
2.6×2.1×0.5 |
1798 |
3.5 |
|
