H-beam straightening machine

Short Description:

Quickly Details: Type: H-beam Straightening Machine Brand:Sanlian Heavy Industry Condition:100% brand new Model number:HYJ Consist: (1)Main frame , (1) Roller bed , (1) Control box Voltage:110V-600V Painting Color:Yellow & Blue Place of origin:Wuxi , China(Mainland)   Applications: The machine is used for the H-beam production line ,to correct the H-beam ,to ensure the workpiece straightening.   Description: HYJ-800 H-beam steel flange straightening machine is specially designed...


  • FOB Price: Negotiable
  • Min.Order Quantity: 1set
  • Supply Ability: 30sets per Month
  • Port: Shanghai
  • Payment Terms: T/T or 100% LC at sight
  • Description and Parameters

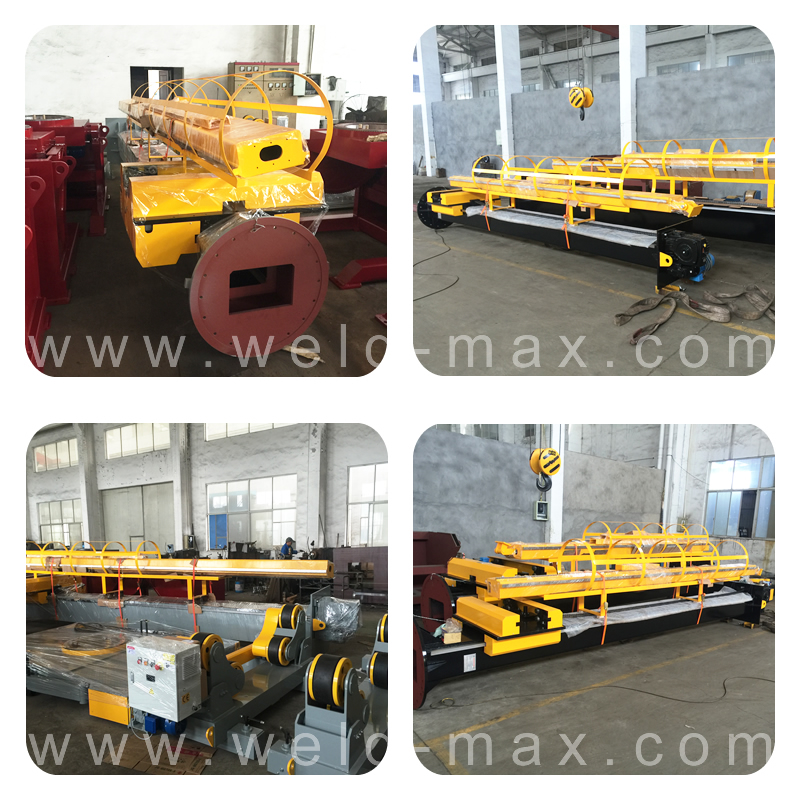

    Details Photos

    Brand Using

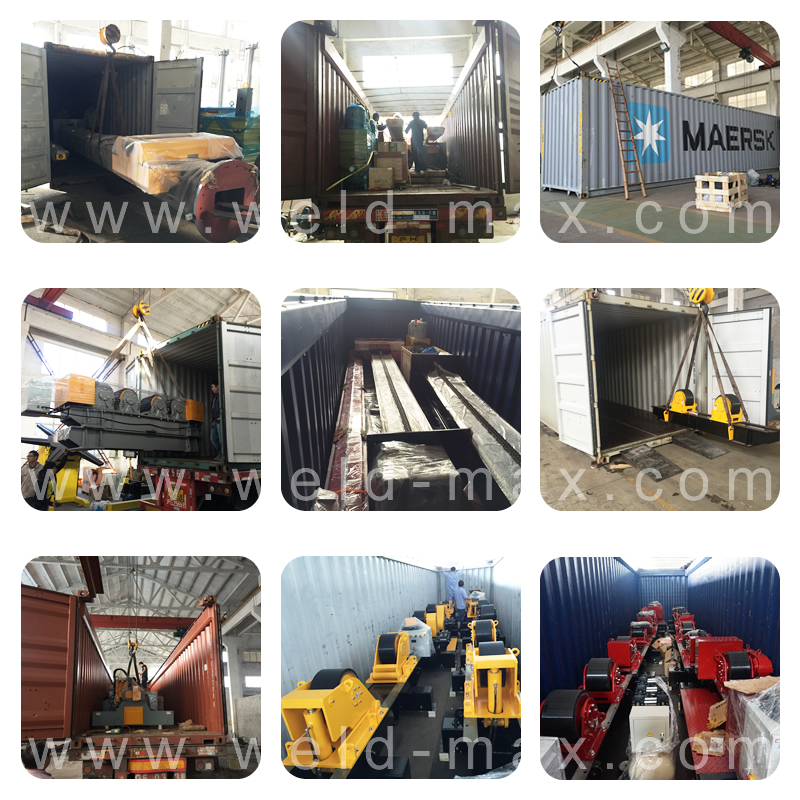

    Packing and Shipment

    Product Tags

    Quickly Details:

    Type: H-beam Straightening Machine

    Brand:Sanlian Heavy Industry

    Condition:100% brand new

    Model number:HYJ

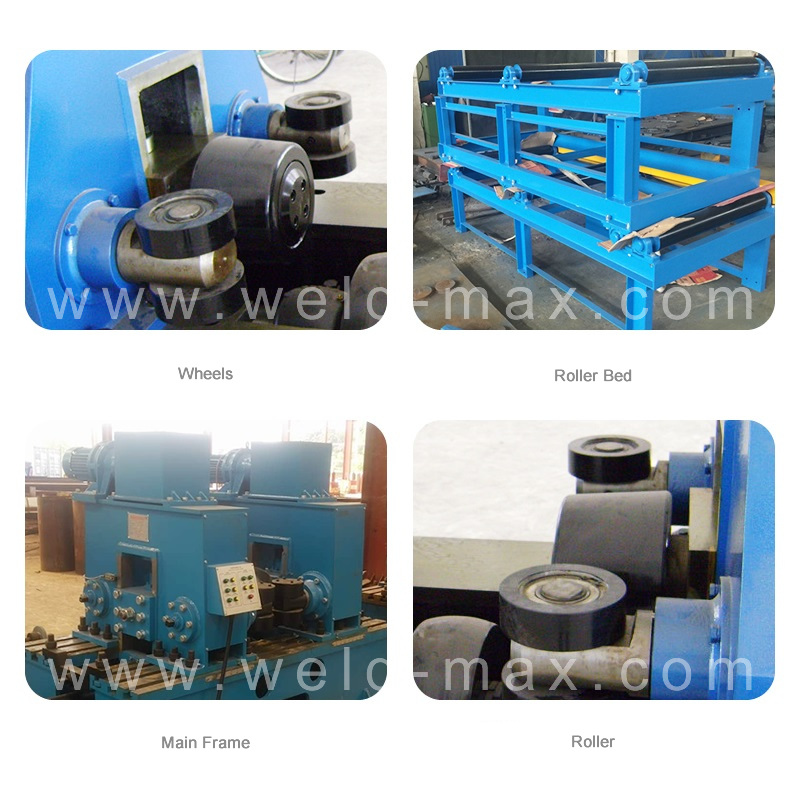

    Consist: (1)Main frame , (1) Roller bed , (1) Control box

    Voltage:110V-600V

    Painting Color:Yellow & Blue

    Place of origin:Wuxi , China(Mainland)



    Applications:

    The machine is used for the H-beam production line ,to correct the H-beam ,to ensure the workpiece straightening.



    Description:

    HYJ-800 H-beam steel flange straightening machine is specially designed for the correction of the steel flange,The main machine use the 22KW electric motor and Pin gear reducer drive characterized by high efficient and high speed.All the correcting rollers are made of high-quality alloy steel.Besides ,the machine is put under advanced hot treatment to prevent crackles.All the parts are reinforced to stabilize the long service life.



    Competitive Advantage:

    1.Using famous electric ,such as Siemens or Schneider
    2. With steel and rubber roller bed can ensure a long time service.

    Technical Parameters

    Height of the Wing Board

    b=180-800mm

    Thickness of Wing Board

    S=6-40mm

    Height of the Former

    ≥180mm

    Power Rate of Major Motor

    11kw

    Correcting Speed

    ≈13300mm/min

    Relationship Between the Width and Thicknessof the Work Piece

    s

    6-30

    30-40

    b

    180-800

    400-900
