Welding Positioning Equipment — Welding Positioner

Welding Positioning Equipment — Welding positioner

Welding Positioner is a equipment that rotates and tilts the workpiece so that the weld on the workpiece is placed in a favorable welding position. It is mainly used for turning and welding of non-long workpieces such as frame, machine base, flange, head, etc. It can also be used for assembly, cutting, inspection, etc.

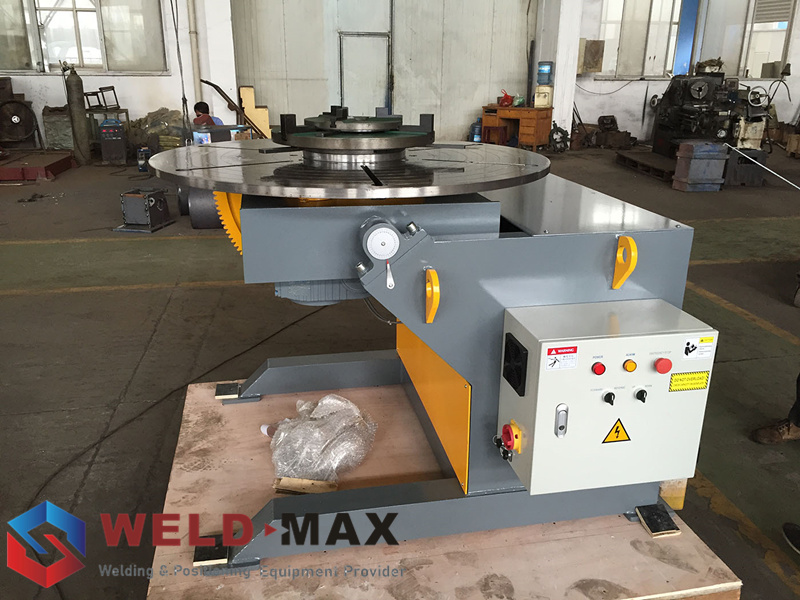

The most popular Weld-Max’s standard Welding Positioner is below , it can free rotation and tilting angle from 0 degree to 90 degree. The loading capacity can be design from 100kg to 50,000kg.  Table plate can be made a round or square plate , and the size / diameter can according to customer’s request. Of course, we have our standard size, For example, 5Ton welding positioner table diameter is 1500mm, and there are 6 T-slot on the table, so that the user can put the jaws on it to clamp the product.

As you can see , we can supply chuck as well, The chuck supply range is from 200mm-1500mm.

When user is going to use this welding positioner to do the manual welding , under the table, there are two copper made grounding device, can loading max 1200A current. It is convenient for customers to weld .

WELDING POSITIONER (4)

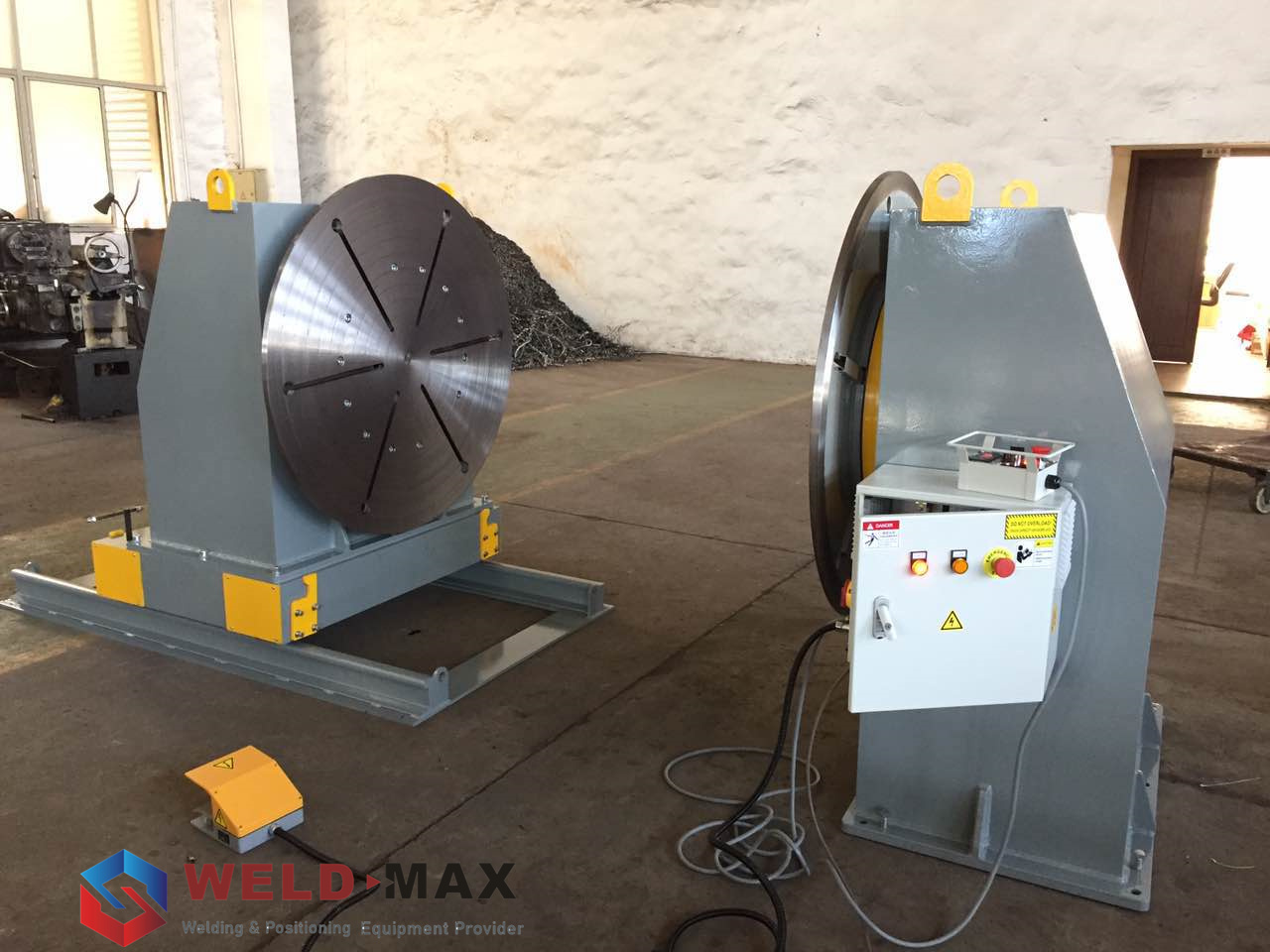

Now let me introduce another type of welding positioner, it is called Head tail stock welding positioner. As you can see the photo below, The Welding Positioner is consist of the head stock and the tail stock. The head stock is motorized driven, and the rotation speed is Variable frequency control. The user can rotate the table forward turning or reverse turning , we  supply a hand remote and a foot remote for the welder as well. The tail stock is consist of a idler rotation frame and a manual trolley , customer can according to the workpiece length decided the position of the tail frame, This kind of welding positioner is suitable for something long workpiece.



WELDING POSITIONER (1)

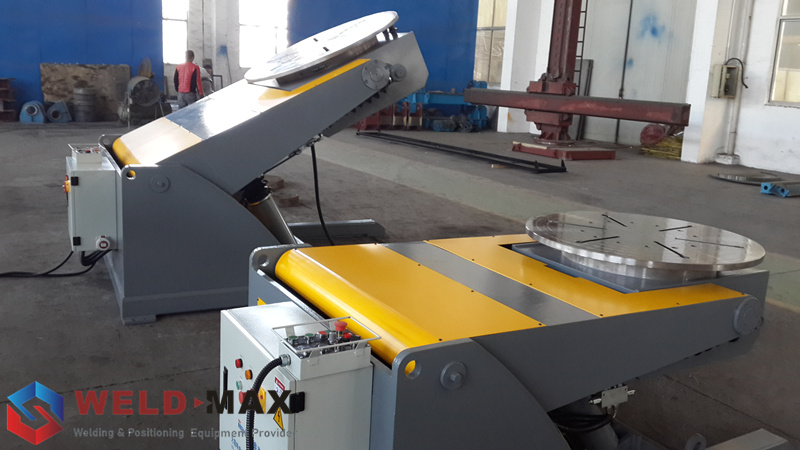

Weld-Max’s hydraulic welding positioner is an advanced high end machine , it is a 3 axis welding positioner, can do rotation , tilting and lifting by hydraulic cylinder. Most of our customer use this kind of welding positioner to weld the elbow pipe. Of course , they need to fix a elbow fixture on the table first. If you need the welding positioner with more working  conditions , the hydraulic welding positioner maybe a good choice.

WELDING POSITIONER (3)

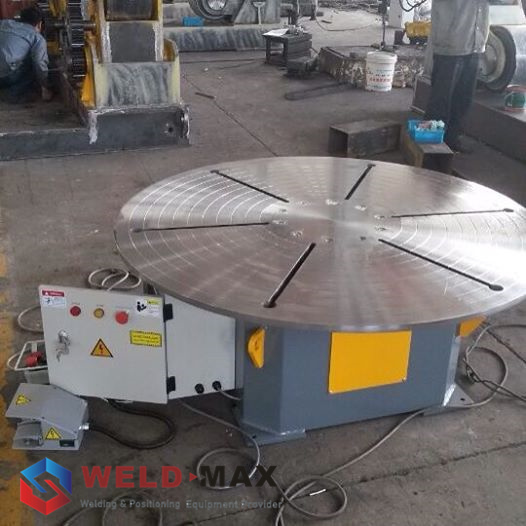

Weld-Max’s turntable is also liked by lots of our customers, because it can be used for many jobs, not only in welding bay, but also can be use for cutting station. The rotation speed is depend on the customer, we can do welding speed 0.05-0.5 rpm or can design the turning table with a high range rotation speed to 10rpm or 20rpm, depend on the using. Of course, the table diameter can be also customized from 600mm to 2200mm, if customer want a bigger table, we can make the extension jaws, so that the total diameter can reach to 5000mm. The max loading & rotation capacity we can do is 100Ton. Which is good for us.

WELDING POSITIONER (2)

Anyway, If you have any welding problems, please feel free to contact with us by email, info@weld-max.com. Our experienced sales engineer will give you the the most valuable advice.

Weld-Max is not only provide welding positioner, but also can provide types of welding rotators and welding column and boom.
