The design of Weld-Max draws on the actual characteristics of welding rotators at home and abroad, combined with the process requirements of our factory, compared with the domestic and foreign markets, the welding rotator layout is more reasonable, simple and convenient to operate, and reliable in use.

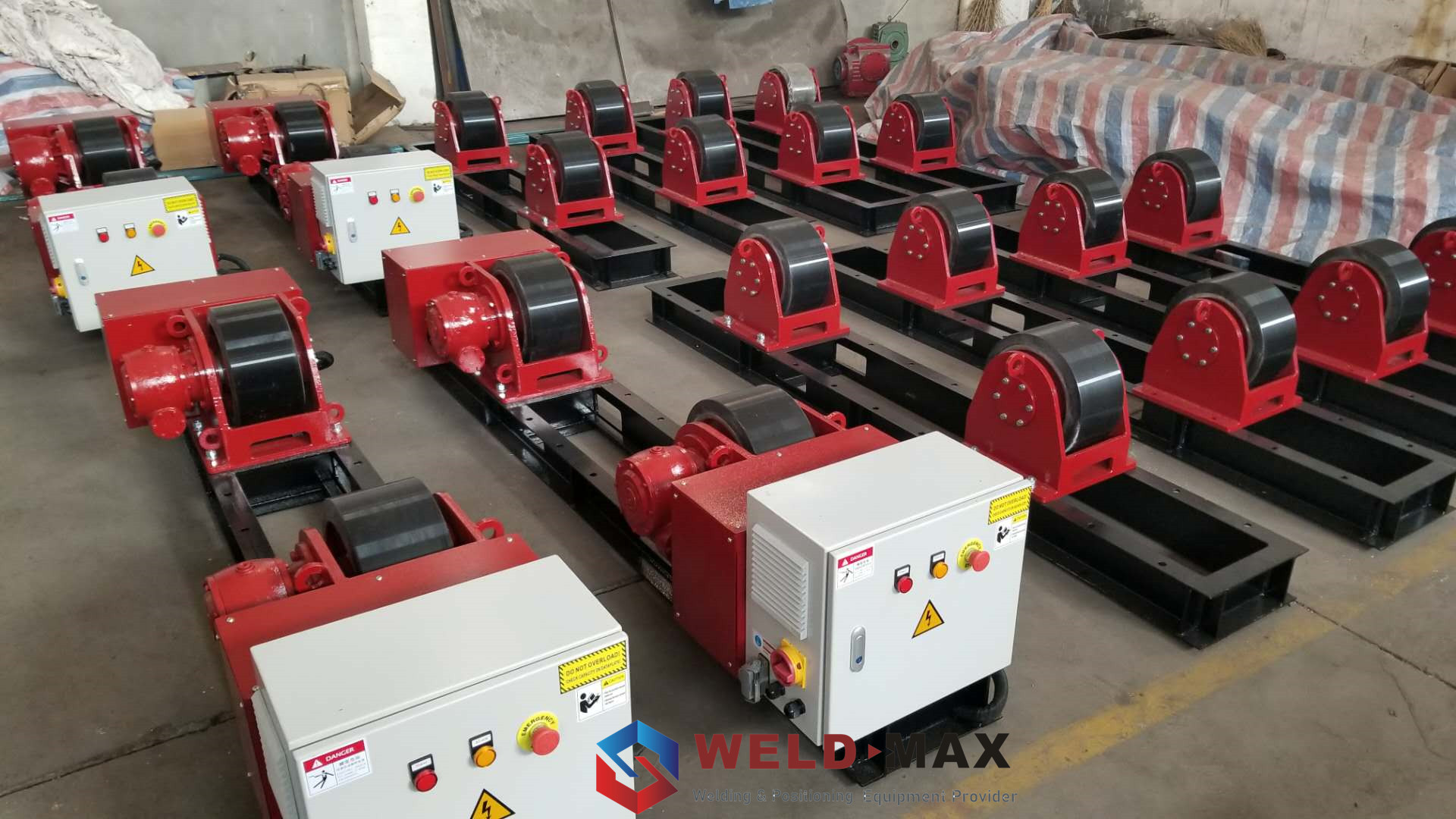

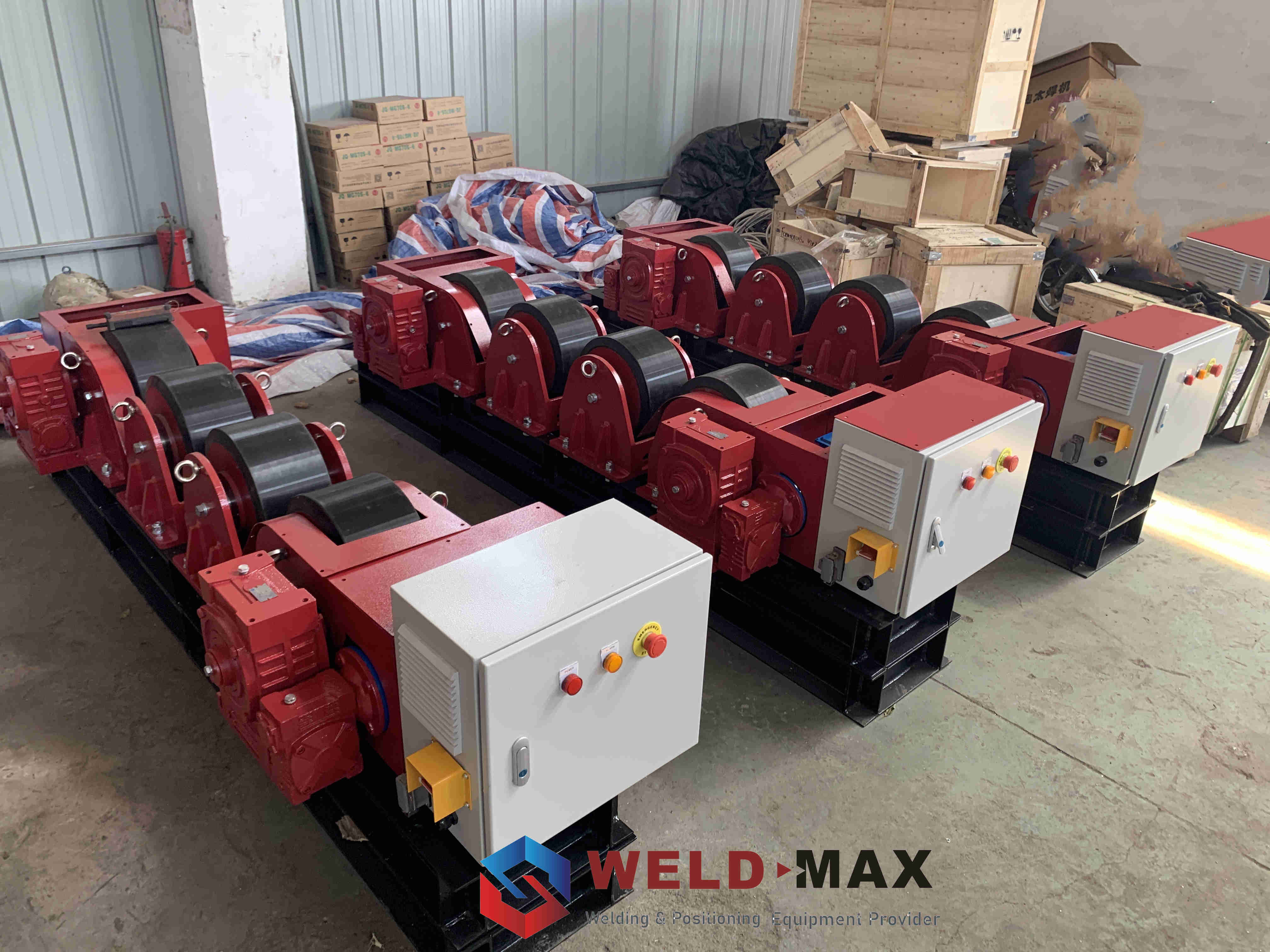

This product is a combined welding rotator. The active rotator and the driven rotator are independent. They can be combined according to the weight and length of the workpiece. The combination can be a combination of one master and one cluster, or It is a combination of one master, two clusters, one master and three slaves, which is convenient and flexible to use, and has strong adaptability to weldments. As shown

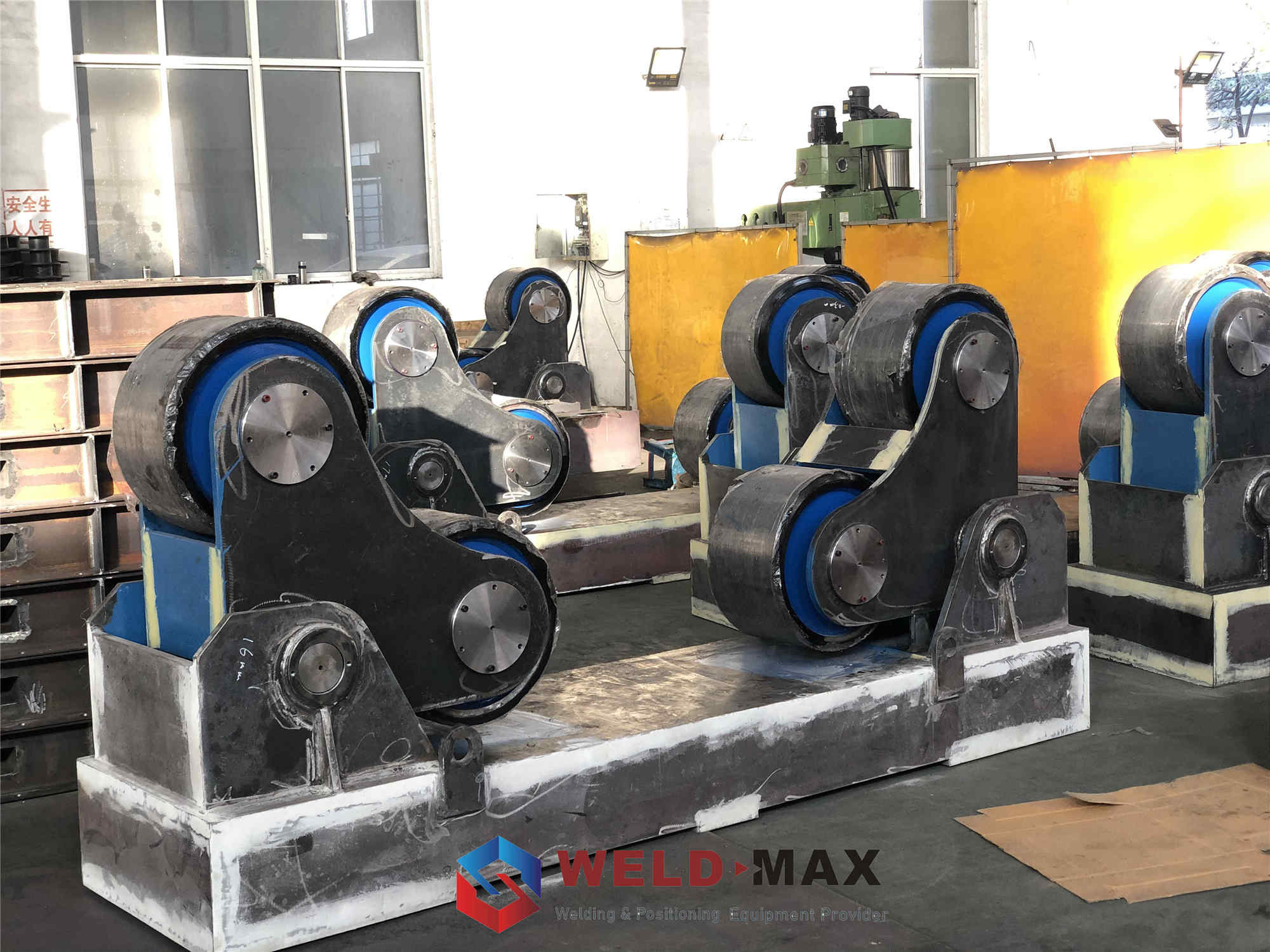

The driving frame is mainly composed of a base, a roller, a transmission reduction mechanism, and a control system, and the driven frame is mainly composed of a bottom tire and a roller.
The base adopts a steel frame structure welded by H-shaped steel, and the weld has no defects such as cracks, pores, arc pits and slag inclusions, ensuring its good rigidity and the stability of the equipment in working conditions, and can reduce the overall welding rotator. The weight not only saves a lot of board consumption but also achieves the effect of equipment use.

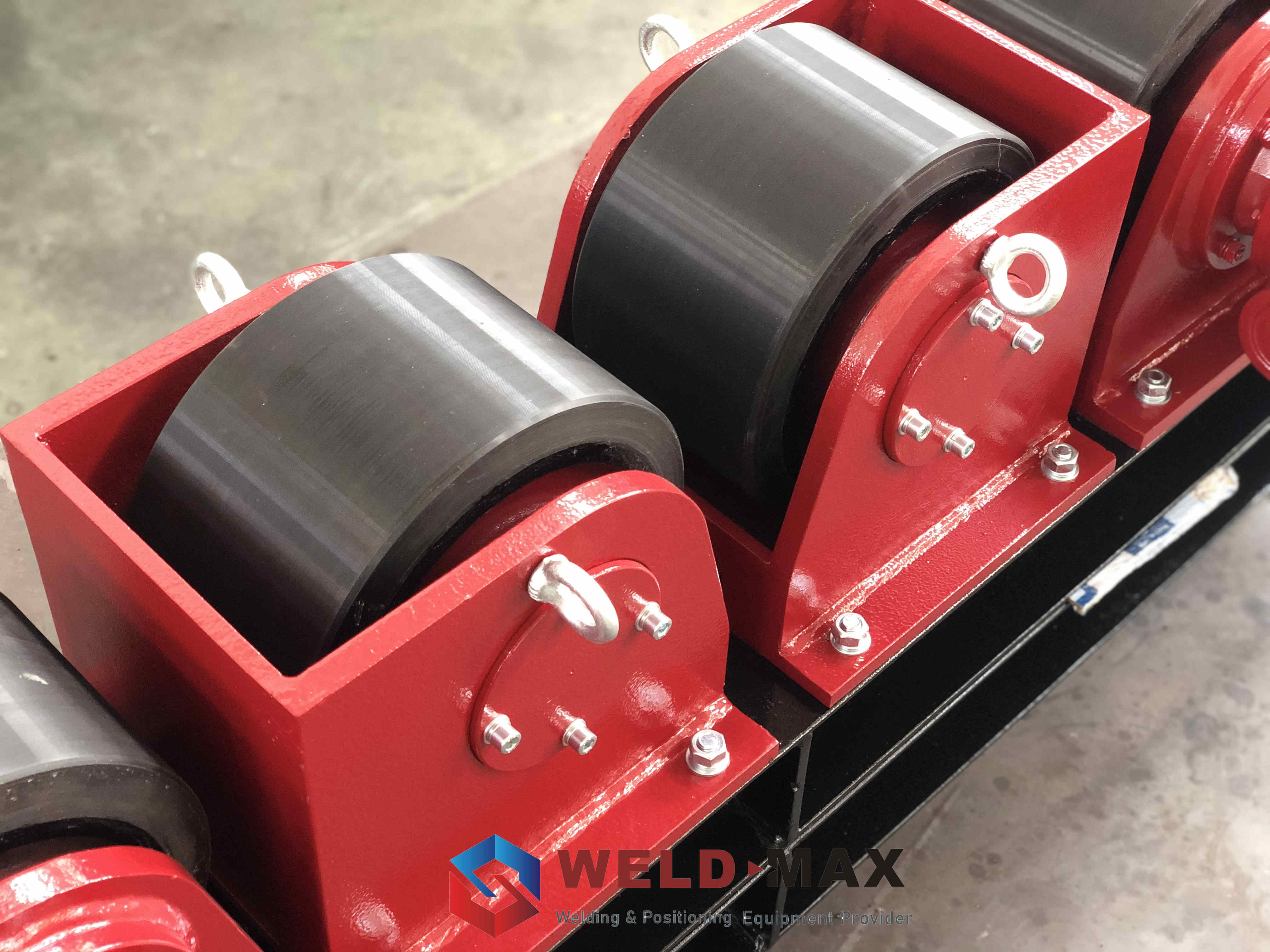

There are two rollers on the driving wheel and the driven wheel of the welding roller frame. According to the standard of JB/T9187-1999 “Welding roller frame”, the steel core wheel is wrapped with polyurethane. The rollers are clamped on the beam of the base support, and each side is fixed with high-strength bolts.
The transmission system directly transmits the power to the rollers through the reducer of a famous Chinese brand.

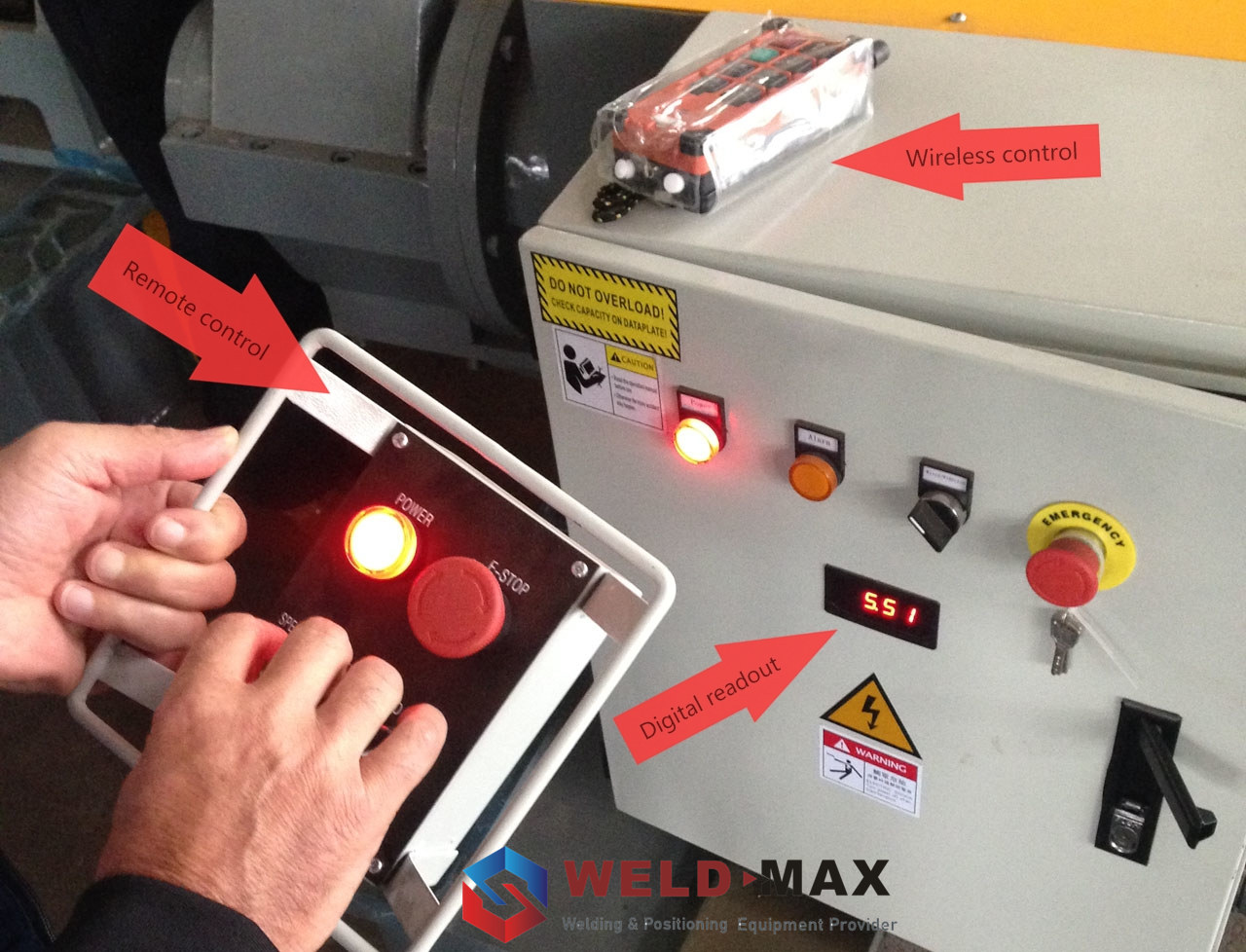

The electrical control system can operate buttons by remote control, and the main electrical components of the motor control box adopt Siemens products. The electrical components are firmly installed on the roller frame, and the operation does not shake.
The whole series of welding rotators are equipped with stroke protection, emergency protection and terminal protection.
The bearing seat and the bearing cover of the reducer are filled with grease, especially the sealing groove of the through cover should be filled with grease.
